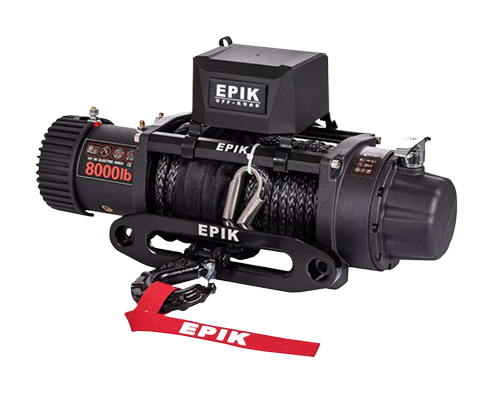

SCE 8000LB SYNTHETIC WINCH
SKU: SCE-8.0S
SCE series is the most popular winches especially in Europe, Australia and Southeast Asia.With 100% load automatic brake and lower working noise, we also offer a large variety of gear ratios [216:1,150:1] to meet our customers' requirement.With different power of series wound motors[5.5hp/6.0hp/6.5hp/7.2hp/7.8hp], it will be much faster than normal winches.
Warranty
Read our warranty policy
Keyword：
TRUCK/SUV WINCHES
6000-8000LB
SCE SERIES
Category：
TRUCK/SUV WINCHES
6000-8000LB
SCE SERIES
SCE 8000LB SYNTHETIC WINCH
| RATED LINEPULL | 8,000lbs/3,630kgs single-line |
| MOTOR | 12V DC, Sealed Series Wound |
| GEARTRAIN | 3-stage planetary |
| GEAR RATIO | 216:1 or 150:1 |
| BRAKE | Automatic, 100% load holding |
| CLUTCH | Rotate 90 degrees |
| ELECTRICALCONTROLS | 400A Sealed Contactor |
| ELECTRIC CABLES | Copper 20mm² |
| WIRED CONTROLLER | 3pin, 12ft(3.7m) |
| WIRELESS REMOTE | Included |
| ROPE | Synthetic 9.5mm x 24m Steel 8.3mm x 27m |
| FAIRLEAD | SCE-8.0S: Hawse SCE-8.0: Roller |
| RECOMMENDED BATTERY | 650 CCA minimum for winching |
| BATTERY LEADS | 20mm², 72ft(1.83m) |
| WARRANTY | 2 Years |

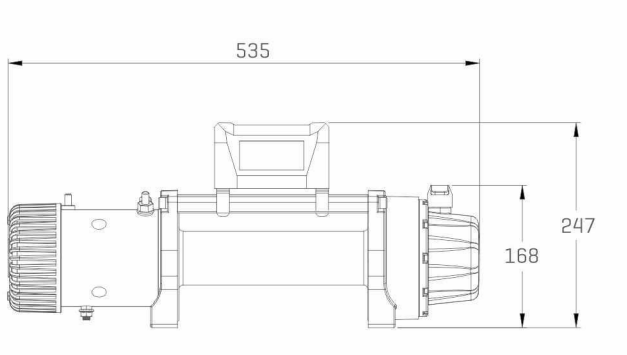

WINCH DIMENSIONS: 21.1" x 6.3" x 6.6" (535 x 163 x 168mm)
MOUNTING BOLT PATTERN:10”x 4.5”(254mm x 114.3mm)
SHIPPING INFORMATION:
WINCH WEIGHT:SCE-8.0S: 55.1lbs/25kgs SCE-8.0: 77.2lbs/35kgs
GROSS WEIGHT:SCE-8.0S: 59.5lbs/27kgs SCE-8.0: 81.6lbs/37kgs
BOX DIMENSION:24.0"×13.4"×10.2" (610×340×260 mm)
| LAYER OF SYNTHETIC ROPE | MAX LINE PULL |
| 1 | 8,000lbs/3,630kgs |
| 2 | 6,500lbs/2,948kgs |
| 3 | 5,500lbs/2,495kgs |
| 4 | 4,800lbs/2,177kgs |
| LOAD | LINE SPEED | AMP DRAW[12V] |
| No Load | 28.5FPM/8.7MPM | 75 |
| 2,000lbs/907kgs | 20.7FPM/6.3MPM | 95 |
| 4,000lbs/1,814kgs | 17.0FPM/5.4MPM | 195 |
| 6,000lbs/2,721kgs | 13.8FPM/4.2MPM | 240 |
| 8,000lbs/3,628kgs | 8.9FPM/2.7MPM | 291 |
