SCE 13500LB SYNTHETIC WINCH
SKU: SCE-13.5S
SCE series is the most popular winches especially in Europe, Australia and Southeast Asia.With 100% load automatic brake and lower working noise, we also offer a large variety of gear ratios [216:1,150:1] to meet our customers' requirement.With different power of series wound motors[5.5hp/6.0hp/6.5hp/7.2hp/7.8hp], it will be much faster than normal winches.
Warranty
Read our warranty policy
Keyword：
TRUCK/SUV WINCHES
9000-13500LB
SCE SERIES
Category：
TRUCK/SUV WINCHES
9000-13500LB
SCE SERIES
SCE 13500LB SYNTHETIC WINCH
| RATED LINEPULL | 13,500lbs/6,124kgs single-line |
| MOTOR | 12V DC, Sealed Series Wound 6.6HP |
| GEARTRAIN | 3-stage planetary |
| GEAR RATIO | 216:1 / 150:1 |
| BRAKE | Automatic, 100% load holding |
| CLUTCH | Rotate 90 degrees |
| ELECTRICALCONTROLS | 400A Sealed Contactor |
| ELECTRIC CABLES | Copper 20mm² |
| WIRED CONTROLLER | 3pin, 12ft(3.7m) |
| WIRELESS REMOTE | Included |
| ROPE | Synthetic 9.5mm x 26m Steel 9.5mm x 26m |
| FAIRLEAD | SCE-13.5S: Hawse SCE-13.5: Roller |
| RECOMMENDED BATTERY | 650 CCA minimum for winching |
| BATTERY LEADS | 20mm², 72ft(1.83m) |
| WARRANTY | 2 Years |

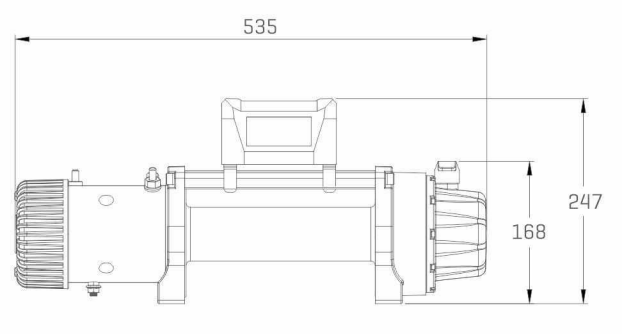

WINCH DIMENSIONS: 21.1" x 6.3" x 6.6" (535 x 163 x 168mm)
MOUNTING BOLT PATTERN:10”x 4.5”(254mm x 114.3mm)
SHIPPING INFORMATION:
WINCH WEIGHT:SCE-9.5S: 57.3lbs/26kgs SCE-9.5: 79.4lbs/36kgs
GROSS WEIGHT:SCE-9.5S: 61.7lbs/28kgs SCE-9.5: 83.8lbs/38kgs
BOX DIMENSION:24.0"×13.4"×10.2" (610×340×260 mm)
| LAYER OF SYNTHETIC ROPE | MAX LINE PULL |
| 1 | 13,500lbs/6,124kgs |
| 2 | 10,010lbs/4,541kgs |
| 3 | 9,300lbs/4,218kgs |
| 4 | 8,500lbs/3,856kgs |
| LOAD | LINE SPEED | AMP DRAW[12V] |
| No Load | 31.8FPM/9.7MPM | 75 |
| 4,000lbs/1,814kgs | 21.6FPM/6.6MPM | 195 |
| 6,000lbs/2,721kgs | 17.7FPM/5.4MPM | 240 |
| 8,000lbs/3,628kgs | 13.4FPM/4.1MPM | 291 |
| 10,000lbs/4,536kgs | 11.2FPM/3.4MPM | 335 |
| 13,500lbs/6,124kgs | 7.5FPM/2.3MPM | 375 |
