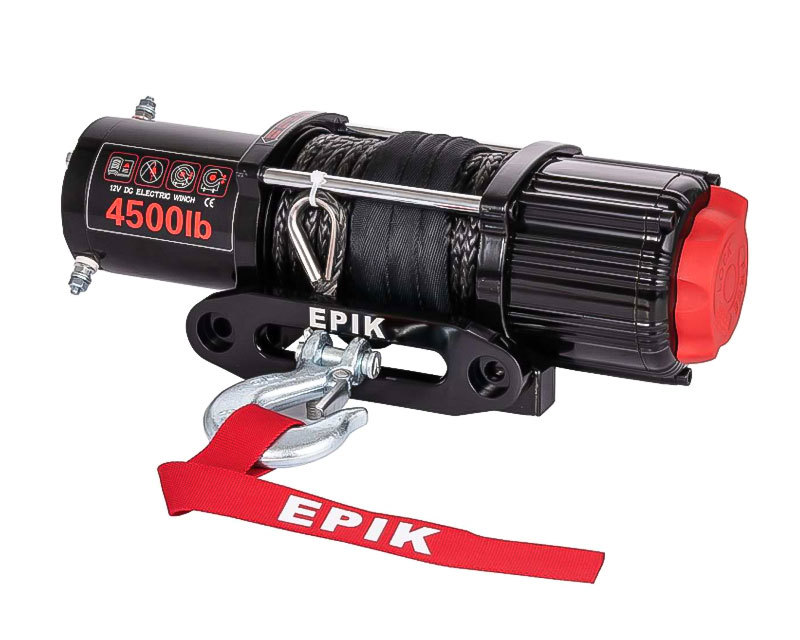

UTV 4500LB SYNTHETIC WINCH
SKU: UTV4500
UTV series are designed with 3-stage planetary gears which make them more reliable and stable. Besides, it has an automatic brake in the drum to protect your ATV/UTV during recovery pulling. Those strong winches are also widely used for light vehicles like Jimny and Samurai.
Warranty
Read our warranty policy
Keyword：
ATV/UTV WINCHES
3500-6000LB
UTV SERIES
Category：
ATV/UTV WINCHES
3500-6000LB
UTV SERIES
UTV 4500LB SYNTHETIC WINCH
|
Line Pull |
4,500lbs/2,041kgs |
|
Motor |
3.5HP Permanent Magnet |
|
Gear Train |
3-stage planetary |
|
Gear Ratio |
166:1 |
|
Brake |
Mechanical spring |
|
Clutch |
Rotate 92 degrees |
|
Solenoid |
200A Sealed |
|
Remote Switch |
6.6ft(2m) |
|
Rope |
Steel 6.5mm×15m Synthetic 6.5mm×15m |
|
Fairlead |
Roller or Hawse |

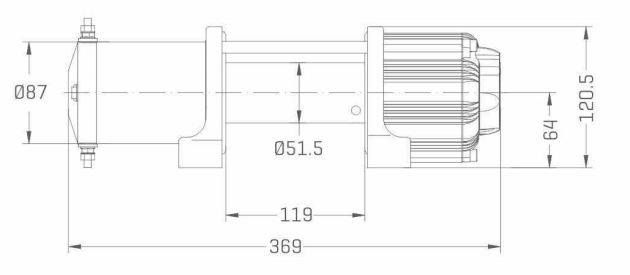

Winch Dimensions: 14.4" x 5.0" x 4.8" (367 x 128 x 122mm)
Mounting Bolt Pattern: 6.5” x 3.0” (164mm x 76.2mm)
SHIPPING INFORMATION:
UTV4000: 29.3lbs(13.3kgs) / 31.5lbs(14.3kgs)
UTV4500S: 27.1lbs(12.3kgs) / 29.3lbs(13.3kgs)
Box Dimension: 16.5” x 12.6” x 5.9”(420 x 320 x 150 mm)
|
Layer of Wire Rope |
Max Line Pull |
|
1 |
4,500lbs/2,041kgs |
|
2 |
3,225lbs/1,463kgs |
|
3 |
2,700lbs/1,225kgs |
|
4 |
2,325lbs/1,055kgs |
|
Load |
Line Speed |
AMP Draw(12V) |
|
No Load |
16FPM/4.9MPM |
15 |
|
1,000lbs/454kgs |
10.5FPM/3.2MPM |
70 |
|
2,000lbs/907kgs |
9.2FPM/2.8MPM |
105 |
|
3,000lbs/1,360kgs |
7.2FPM/2.2MPM |
135 |
|
4,500lbs/2,041kgs |
3.9FPM/1.2MPM |
210 |
