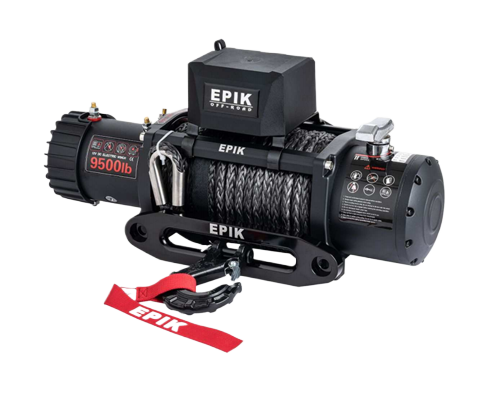

STD 9500LB SYNTHETIC WINCH
SKU: STD-9.5S
With the longest history, STD series is the most reliable winches with an afford able cost.All models are equipped with powerful series wound motor which delivers superb output.Automatic brake provides 100% load braking power and noise is much lower during working under load.Besides, gear ratio 265:1 can be changed as customers' requirement like 165:1.
Warranty
Read our warranty policy
Keyword：
TRUCK/SUV WINCHES
STD SERIES
9000-13500LB
Category：
TRUCK/SUV WINCHES
STD SERIES
9000-13500LB
STD 9500LB SYNTHETIC WINCH
| RATED LINEPULL | 9,500lbs/4,309kgs single-line |
| MOTOR | 12V DC, Sealed Series Wound 5.2HP |
| GEARTRAIN | 3-stage planetary |
| GEAR RATIO | 265:1 |
| BRAKE | Automatic, 100% load holding |
| CLUTCH | Rotate 90 degrees |
| ELECTRICALCONTROLS | 400A Sealed Contactor |
| ELECTRIC CABLES | Copper 20mm² |
| WIRED CONTROLLER | 3pin, 12ft(3.7m) |
| WIRELESS REMOTE | Included |
| ROPE | Synthetic 9.5mm x 26m Steel 9.5mm x 26m |
| FAIRLEAD | STD-9.5S: Hawse STD-9.5: Roller |
| RECOMMENDED BATTERY | 650 CCA minimum for winching |
| BATTERY LEADS | 20mm2, 72ft(1.83m) |
| WARRANTY | 2 Years |

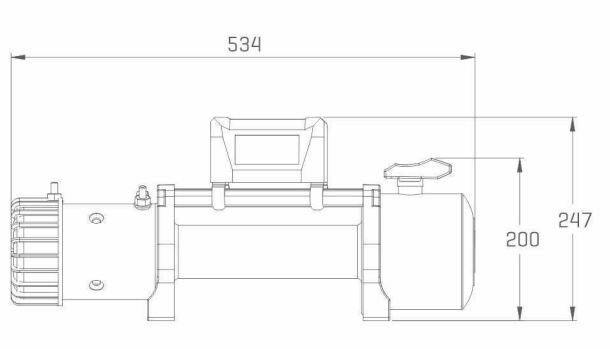

WINCH DIMENSIONS: 21.0" x 6.3" x 7.9" (534 x 163 x 200mm)
MOUNTING BOLT PATTERN:10”x 4.5”(254mm x 114.3mm)
SHIPPING INFORMATION:
WINCH WEIGHT:STD-9.5S: 57.3lbs/26kgs STD-9.5: 79.4lbs/36kgs
GROSS WEIGHT:STD-9.5S: 61.7lbs/28kgs STD-9.5: 83.8lbs/38kgs
BOX DIMENSION:24.0"×13.4"×10.2" (610×340×260 mm)
| LAYER OF SYNTHETIC ROPE | MAX LINE PULL |
| 1 | 9,500lbs/4,309kgs |
| 2 | 8,432lbs/3,825kgs |
| 3 | 7,640lbs/3,465kgs |
| 4 | 7,086lbs/3,214kgs |
| LOAD | LINE SPEED | AMP DRAW[12V] |
| No Load | 30.2FPM/9.2MPM | 75 |
| 2,000lbs/907kgs | 20.7FPM/6.3MPM | 95 |
| 4,000lbs/1,814kgs | 18.0FPM/5.5MPM | 195 |
| 6,000lbs/2,721kgs | 13.8FPM/4.2MPM | 240 |
| 8,000lbs/3,628kgs | 10.2FPM/3.1MPM | 291 |
| 9,500lbs/4,309kgs | 7.9FPM/2.4MPM | 325 |
