STD 8000LB SYNTHETIC WINCH
SKU: STD-8.0S
With the longest history, STD series is the most reliable winches with an afford able cost.All models are equipped with powerful series wound motor which delivers superb output.Automatic brake provides 100% load braking power and noise is much lower during working under load.Besides, gear ratio 265:1 can be changed as customers' requirement like 165:1.
Warranty
Read our warranty policy
Keyword：
TRUCK/SUV WINCHES
6000-8000LB
STD SERIES
Category：
TRUCK/SUV WINCHES
6000-8000LB
STD SERIES
STD 8000LB SYNTHETIC WINCH
| RATED LINEPULL | 8,000lbs/3,630kgs single-line |
| MOTOR | 12V DC, Sealed Series Wound |
| GEAR TRAIN | 3-stage planetary |
| GEAR RATIO | 265:1 |
| BRAKE | Automatic, 100% load holding |
| CLUTCH | Rotate 90 degrees |
| ELECTRICAL CONTROLS | 400A Sealed Contactor |
| ELECTRIC CABLES | Copper 20mm² |
| WIRED CONTROLLER | 3pin, 12ft(3.7m) |
| WIRELESS REMOTE | Included |
| ROPE | Synthetic 9.5mm x 24m Steel 8.3mm x 27m |
| FAIRLEAD | STD-8.0S: Hawse STD-8.0: Roller |
| RECOMMENDED BATTERY | 650 CCA minimum for winching |
| BATTERY LEADS | 20mm², 72ft(1.83m) |
| WARRANTY | 2 Years |

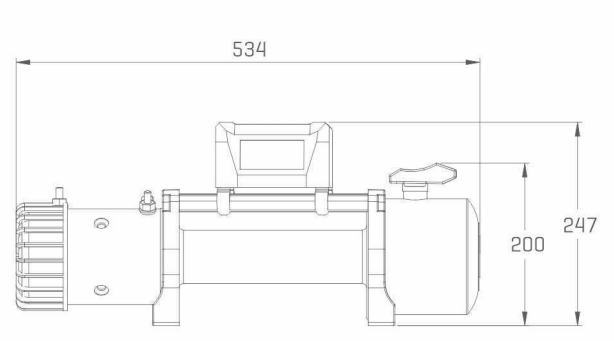

WINCH DIMENSIONS: 21.0" x 6.3" x 7.9" (534 x 163 x 200mm)
MOUNTING BOLT PATTERN:10”x 4.5”(254mm x 114.3mm)
SHIPPING INFORMATION:
WINCH WEIGHT: STD-8.0S: 55.1lbs/25kgs STD-8.0: 77.2lbs/35kgs
GROSS WEIGHT: STD-8.0S: 59.5lbs/27kgs STD-8.0: 81.6lbs/37kgs
BOX DIMENSION: 24.0"×13.4"×10.2" (610×340×260 mm)
| LAYER OF SYNTHETIC ROPE | MAX LINE PULL |
| 1 | 8,000lbs/3,630kgs |
| 2 | 6,500lbs/2,948kgs |
| 3 | 5,500lbs/2,495kgs |
| 4 | 4,800lbs/2,177kgs |
| LOAD | LINE SPEED | AMP DRAW[12V] |
| No Load | 28.5FPM/8.7MPM | 75 |
| 2,000lbs/907kgs | 20.7FPM/6.3MPM | 95 |
| 4,000lbs/1,814kgs | 17.0FPM/5.4MPM | 195 |
| 6,000lbs/2,721kgs | 13.8FPM/4.2MPM | 240 |
| 8,000lbs/3,628kgs | 8.9FPM/2.7MPM | 291 |
