STD 17000LB CABLE WINCH
SKU: STD17000
With the longest history, STD series is the most reliable winches with an afford able cost.All models are equipped with powerful series wound motor which delivers superb output.Automatic brake provides 100% load braking power and noise is much lower during working under load.Besides, gear ratio 265:1 can be changed as customers' requirement like 165:1.
Warranty
Read our warranty policy
Keyword：
TRUCK/SUV WINCHES
15000-20000LB
STD SERIES
Category：
TRUCK/SUV WINCHES
15000-20000LB
STD SERIES
STD 17000LB CABLE WINCH
|
SPECIFICATION: |
|
|
Rated line pull |
15,000lbs/6,804kgs single-line |
|
Motor |
12V DC, Sealed Series Wound 7.2HP |
|
Gear Train |
3-stage planetary |
|
Gear Ratio |
364:1 |
|
Brake |
Automatic, 100% load holding |
|
Clutch |
Rotate 90 degrees |
|
Electrical controls |
500A Sealed Contactor |
|
Electric cables |
Copper 25mm2 |
|
Wired Controller |
3pin, 12ft(3.7m) |
|
Wireless Remote |
Included |
|
Rope |
Synthetic 11mm x 26m |
|
|
Steel 11mm x 26m |
|
Fairlead |
STD-17.0S: Hawse |
|
|
STD-17.0: Roller |
|
Recommended Battery |
650 CCA minimum for winching |
|
Battery leads |
25mm2, 72ft(1.83m) |
|
Warranty |
2 years |

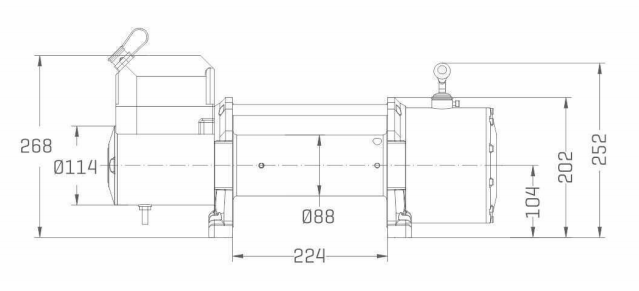

Winch Dimensions: 23.1" x 8.5" x 10.1" (588 x 215 x 256mm)
Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm)
SHIPPING INFORMATION:
STD15.0S: 94.8lbs(43kgs) / 99.2lbs (45kgs)
STD15.0:111.3lbs(50.5kgs) / 115.7lbs (52.5kgs)
Box Dimension: 26.0" x 18.1" x 10.6"(660×460×270 mm )
|
Layer of Wire Rope |
Max Line Pull |
|
1 |
17,000lbs/7,711kgs |
|
2 |
13,800lbs/6,260kgs |
|
3 |
11,300lbs/5,126kgs |
|
4 |
9,358lbs/4,245kgs |
|
Load |
Line Speed |
AMP Draw(12V) |
|
No Load |
27.9FPM/8.5MPM |
70 |
|
4,000lbs/1,814kgs |
21.0FPM/6.4MPM |
200 |
|
6,000lbs/2,721kgs |
16.7FPM/5.1MPM |
240 |
|
8,000lbs/3,628kgs |
14.8FPM/4.5MPM |
291 |
|
10,000lbs/4,536kgs |
11.2FPM/3.4MPM |
335 |
|
12,000lbs/5,443kgs |
7.5FPM/2.3MPM |
350 |
|
17,000lbs/7,711kgs |
4.9FPM/1.5MPM |
415 |
