STD 20000LB CABLE WINCH
SKU: STD20000
With longer motors, stronger motor and gear box brackets, stronger gears, better solenoid,thicker cables, we make a more reliable winches for wide usein trucks, commercial felds, fretrucks and military vehicles.
Warranty
Read our warranty policy
Keyword：
TRUCK/SUV WINCHES
15000-20000LB
STD SERIES
Category：
TRUCK/SUV WINCHES
15000-20000LB
STD SERIES
STD 20000LB CABLE WINCH
|
Rated line pull |
20,000lbs/9,071kgs single-line |
|
Motor |
12V DC, Sealed Series Wound 7.9HP |
|
Gear Train |
4-stage planetary |
|
Gear Ratio |
544:1 |
|
Brake |
Automatic, 100% load holding |
|
Clutch |
Rotate 90 degrees |
|
Electrical controls |
500A Sealed Contactor |
|
Electric cables |
Copper 25mm2 |
|
Wired Controller |
3pin, 12ft(3.7m) |
|
Wireless Remote |
Included |
|
Rope |
Synthetic 12mm x 28m |
|
|
Steel 12mm x 28m |
|
Fairlead |
STD-20.0S: Hawse |
|
|
STD-20.0: Roller |
|
Recommended Battery |
650 CCA minimum for winching |
|
Battery leads |
25mm2, 72ft(1.83m) |
|
Warranty |
2 years |

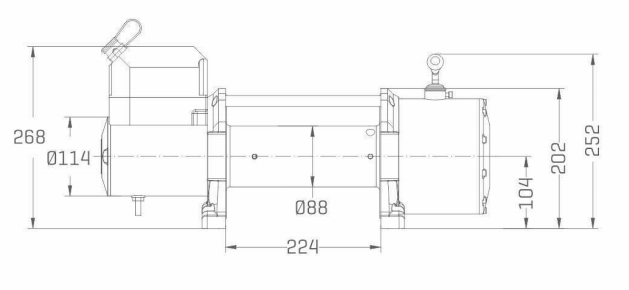

Winch Dimensions: 24.3" x 7.7" x 10.2" (618 x 196 x 260mm)
Mounting Bolt Pattern: 10” x 4.5” (254mm x 114.3mm)
SHIPPING INFORMATION:
STD20.0S: 119.0lbs(54kgs) / 123.5lbs (56kgs)
STD20.0:136.7lbs(62kgs) / 141.1lbs (64kgs)
Box Dimension: 26.0" x 18.1" x 10.6"(660×460×270 mm )
|
Layer of Wire Rope |
Max Line Pull |
|
1 |
20,000lbs/9,071kgs |
|
2 |
17,000lbs/7,711kgs |
|
3 |
16,100lbs/7,303kgs |
|
4 |
15,230lbs/6,908kgs |
|
Load |
Line Speed |
AMP Draw(12V) |
|
No Load |
25.7FPM/7.8MPM |
142 |
|
8,000lbs/3,628kgs |
16.4FPM/4.9MPM |
285 |
|
10,000lbs/4,536kgs |
10.5FPM/3.2MPM |
330 |
|
15,000lbs/6,804kgs |
7.5FPM/2.3MPM |
395 |
|
17,000lbs/7,711kgs |
5.6FPM/1.7MPM |
410 |
|
20,000lbs/9,071kgs |
3.0FPM/0.9MPM |
430 |
