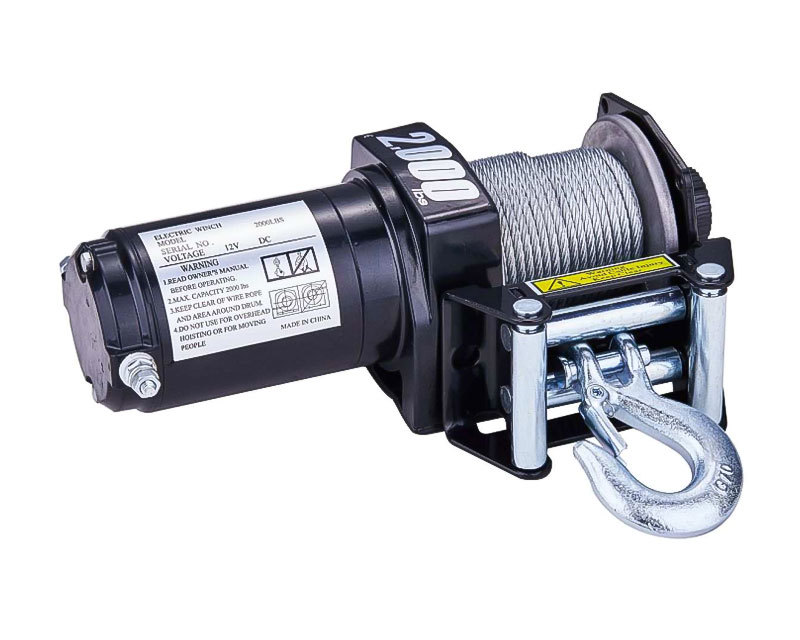

STV 2000LB CABLE WINCH
SKU: STV2000
STV and W series are entry-leve winches for all terrain vehicles or they can be used as material handling tools. Due to their simple structure of 1-stage or 2-stage planetary, their price is the cheapest, Different accessories are available according to customers' requirement.
Warranty
Read our warranty policy
Keyword：
ATV/UTV WINCHES
1500-3000LB
STV SERIES
Category：
ATV/UTV WINCHES
1500-3000LB
STV SERIES
STV 2000LB CABLE WINCH
|
Line Pull |
2,000lbs/970kgs |
| Motor | Permanent Magnet 1.1hp |
| Gear Train | Differential planetary |
| Gear Ratio | 153:1 |
| Clutch | Pull & Turn |
| Brake | Mechanical spring |
| Wire Rope Size | Φ5/32"×50'(Φ4.0mm×15.2m) |
| Drum Size: | Φ1.3"×2.83"(Φ32mm×72mm) |

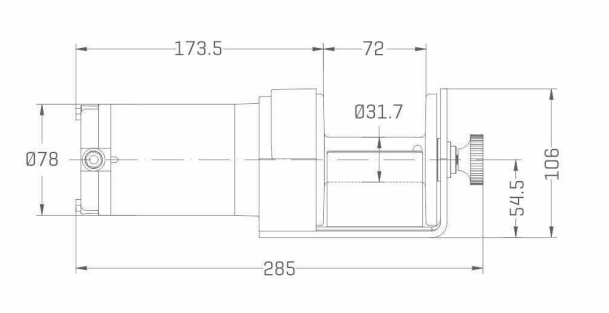

Winch Dimensions: 11.2" x 4.2" x 4.2" (285 x 106 x 106mm)
Mounting Bolt Pattern: 5.1” x 3.1” (130mm x 80mm)
SHIPPING INFORMATION:
Winch Weight: 24.3lbs/11kgs
Gross Weight: 26.5lbs/12kgs
Box Dimension: 13.4"×9.8"×13.8" (340×250×350mm)
|
Layer of Wire Rope |
Max Line Pull |
|
1 |
2,000lbs/907kgs |
|
2 |
1,667lbs/756kgs |
|
3 |
1,389lbs/630kgs |
|
4 |
1,198lbs/543kgs |
|
5 |
1,053lbs/477kgs |
|
Load |
Line Speed |
AMP(12V) |
|
No Load |
10.4FPM/3.2MPM |
10 |
|
500lbs/227kgs |
9.7FPM/3.0MPM |
32 |
|
1,000lbs/454kgs |
7.5FPM/2.3MPM |
63 |
|
1,500lbs/680kgs |
5.9FPM/1.8MPM |
85 |
|
2,000lbs/907kgs |
2.6FPM/0.8MPM |
120 |
