STV 3000LB CABLE WINCH
SKU: STV3000
STV and W series are entry-leve winches for all terrain vehicles or they can be used as material handling tools. Due to their simple structure of 1-stage or 2-stage planetary, their price is the cheapest, Different accessories are available according to customers' requirement.
Warranty
Read our warranty policy
Keyword：
ATV/UTV WINCHES
1500-3000LB
STV SERIES
Category：
ATV/UTV WINCHES
1500-3000LB
STV SERIES
STV 3000LB CABLE WINCH
|
Line Pull |
3,000lbs/1,360kgs |
|
Motor |
Permanent Magnet 1.3hp |
|
Gear Train |
Differential planetary |
|
Gear Ratio |
153:1 |
|
Clutch |
Pull & Turn |
|
Brake |
Mechanical spring |
|
Wire Rope Size |
Φ3/16"×40'(Φ4.8mm×12.2m) |
|
Drum Size |
Φ1.3"×2.83"(Φ32mm×72mm) |

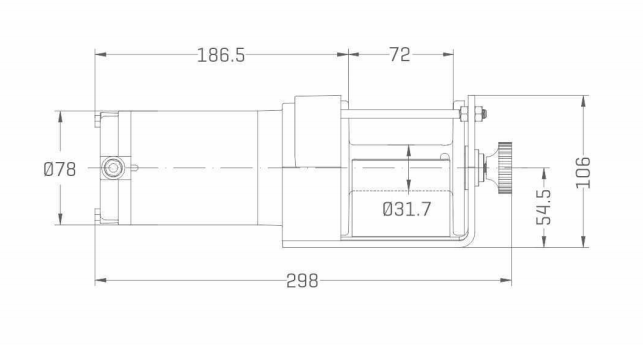

Shipping information: 11.7" x 4.2" x 4.2" (298 x 106 x 106mm)
Mounting Bolt Pattern: 130mm x 80mm (5.1” x 3.1”)
SHIPPING INFORMATION:
Winch Weight: 26.5lbs/12kgs
Gross Weight: 28.7lbs/13kgs
Box Dimension: 13.4"×9.8"×13.8" (340×250×350mm)
|
Layer of Wire Rope |
Max Line Pull |
|
1 |
3,000lbs/1,361kgs |
|
2 |
2,308lbs/1,047kgs |
|
3 |
1,875lbs/851kgs |
|
4 |
1,667lbs/756kgs |
|
5 |
1,429lbs/648kgs |
|
Load |
Line Speed |
AMP(12V) |
|
No Load |
10.5FPM/3.2MPM |
11 |
|
1,000lbs/454kgs |
7.5FPM/2.3MPM |
60 |
|
2,000lbs/907kgs |
3.6FPM/2.3MPM |
92 |
|
3,000lbs/1,361kgs |
2.6FPM/0.8MPM |
131 |
